- Spindle Trolley Clamp MVB
Details
- Different capacity available 1000 kg - 5000 kg
- Push trolley
- Quick and easy adjusting depending on the beam width/flange

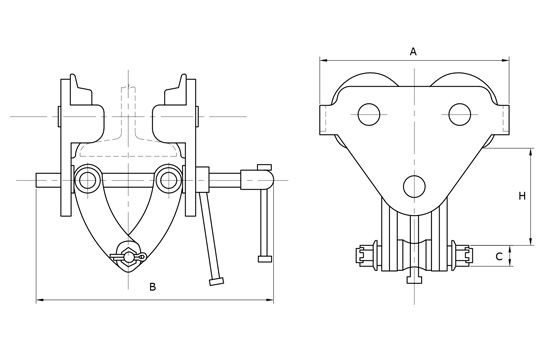

| Tonnage | Beam flange width | A | B | C | H |
| kg | mm | ||||
| 1000 | 64-203 | 260 | 340 | ø20 | 171-232 |
| 2000 | 88-203 | 260 | 340 | ø20 | 237-285 |
| 3000 | 100-203 | 330 | 360 | ø24 | 160-200 |
| 5000 | 114-203 | 380 | 480 | ø24 | 225-280 |
