TSHPU | lightweight Holland profile (Hp) clamp for universal lifting | 3.000 - 5.000 kg

1 to 2 weeks

TSHPU | lightweight Holland profile (Hp) clamp for universal lifting | 3.000 - 5.000 kg

$1,022.07 Incl. Tax $1,236.70

Application:

For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions

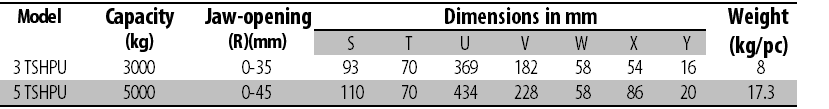

Jaw openings available from: 0 to 45 mm

Working load limit (WLL) 3000 – 5000kg

Higher WLL available upon request . Min . WLL is 10% of max . WLL

Lifting of longer sections should be done with a spreader beam

note: the plate surface of the material must have a hardness level of max. HrC 37/345 Hb

*Work Load Limit

Certificate?

Certificate costs +$4.12

Qty:

Details

Features and benefits:

With articulated lifting shackle for universal lifting flexibility at various angles

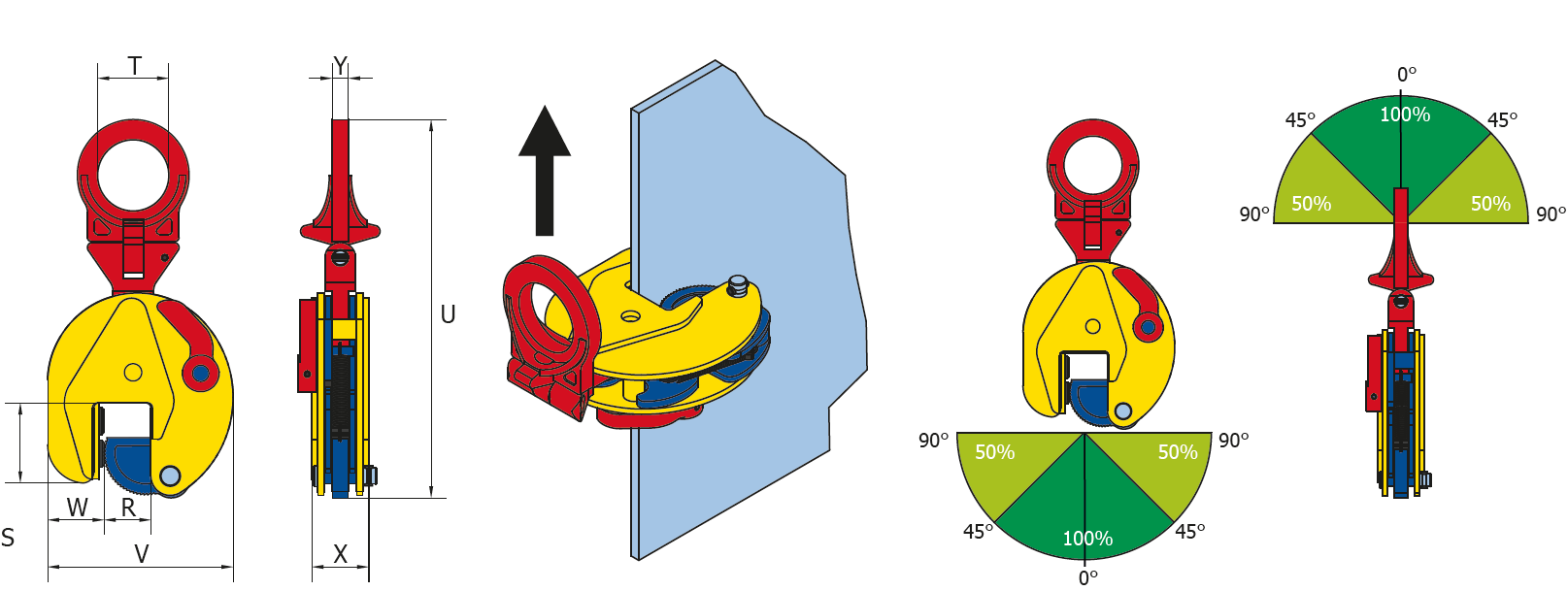

The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below
Standard with 2 pivots for extra powerful clamping force
Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied VertiCal lifting and when load is being lowered
Clamp is locked in closed as well as open position
Lightweight design for easy handling
Tough quality heavy duty welded shell body
Maintenance-friendly, easy to exchange parts which are available upon request
