TSMP | TSEMP | STSMP | three way articulated linkage arrangement for flexible lifting and extended reach | 750 - 9.000 kg

1 to 2 weeks

TSMP | TSEMP | STSMP | three way articulated linkage arrangement for flexible lifting and extended reach | 750 - 9.000 kg

$267.29 Incl. Tax $323.42

Application:

For vertical lifting, transporting and turning of all steel plates and structures

Jaw openings available from: 0 to 100 mm

TSEMP / STSMP types are supplied with enlarged jaw opening

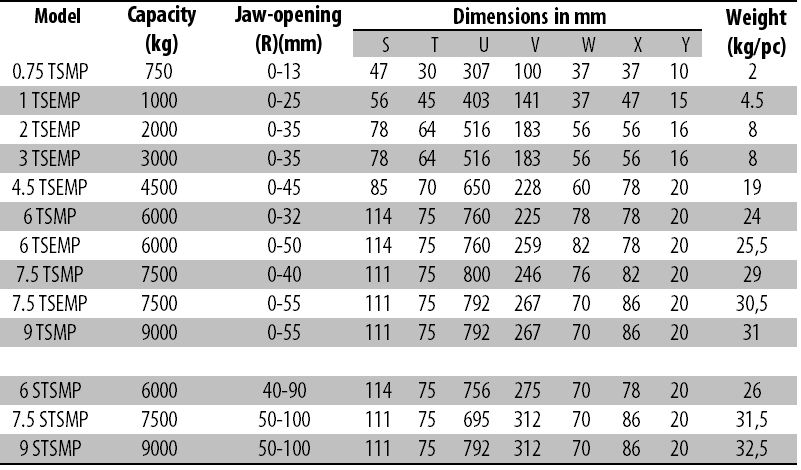

Working load limit (WLL) 750 - 9000kg (Higher WLL available upon request)

Min . WLL is 10% of max . WLL

note: the plate surface of the material must have a hardness level of max. HrC 37/345 Hb

*Work Load Limit

Certificate?

Certificate costs +$4.12

Qty:

Details

Features and benefits:

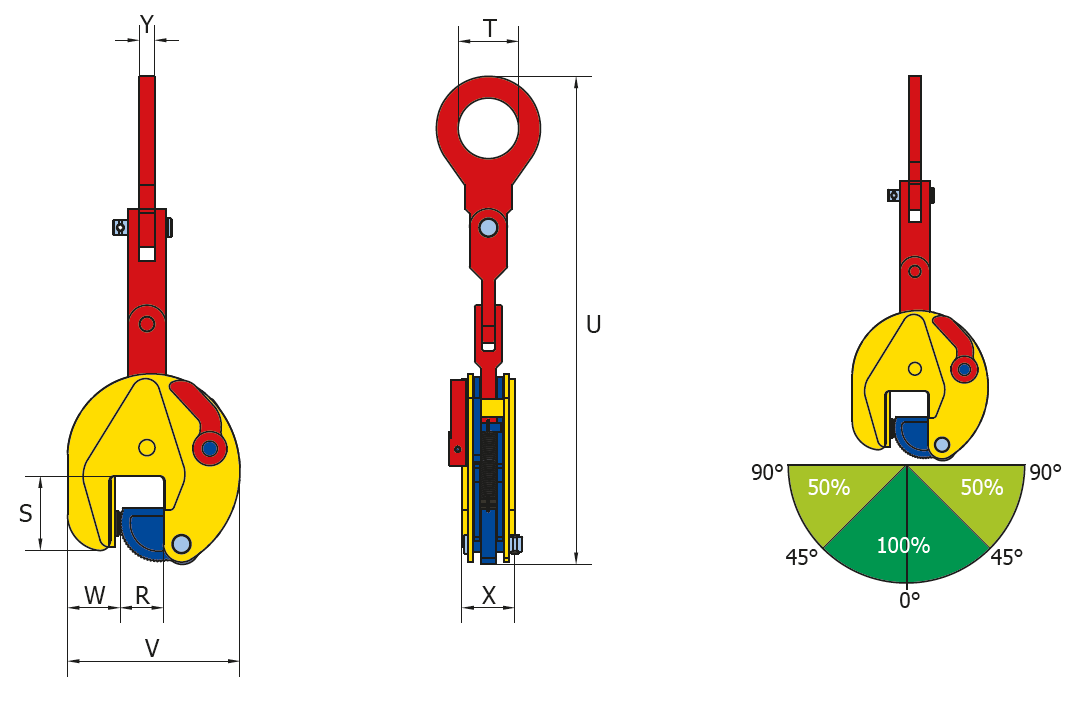

With three way articulated linkage arrangement lifting shackle
Enjoy all the benefits of the TS clamps with extra reach and lifting flexibility
When attached to a fixed load bearing arm (e .g . spreader bar) the clamp will retain its
flexibility and no chain is needed
Due to length of the three way linkage arrangement the clamp can be lowered further
between standing plates or structures
Always equipped with a safety mechanism, ensuring the clamp does not slip when
lifting force is applied and when load is being lowered
Clamp is locked in closed as well as open position
Lightweight design for easy handling
Tough quality heavy duty welded shell body
Maintenance-friendly, easy to exchange parts which are available upon request
